CEC Neon Lamp #C2A (NE-2H), Box of 10
| Part # | C2A | |||||
|---|---|---|---|---|---|---|
| Description | Neon Lamp (NE-2H) | |||||
| Bulb Shape | T-2 | Base Style | Wire Terminal | Circuit Volts | 105/125 | |
| Glass Diameter | 0.25 in / 6. | MOL† | 0.75 in / 19.05 mm | Watts | 0.23 | |
| Breakdown Volts Max (AC) | 95 | Breakdown Volts Max (DC) | 135 | Series Resistance | 30000 | |

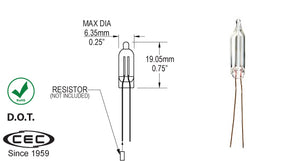

| Life Hours | 25000 | Drawing | ||||
† MOL (Maximum Overall Length):The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271024221
