CEC Miniature Lamp #64113 (H10W), 1 bulb
| Part # | 64113 (H10W) | |||||
|---|---|---|---|---|---|---|
| Description | T2 3/4 12V 10W BA9s (H10W 12V 10W) HALOGEN | |||||
| Bulb Shape | T2 3/4 | Filament | C-6 | Base Style | Miniature Bayonet (BA9s) | |
| Glass Diameter | .364in/ 9.25mm | Lumens | 200 | Base Material | Metal | |
| Design Wattage | 11 | MSCP † | 16 | RoHS Compliant | Yes | |

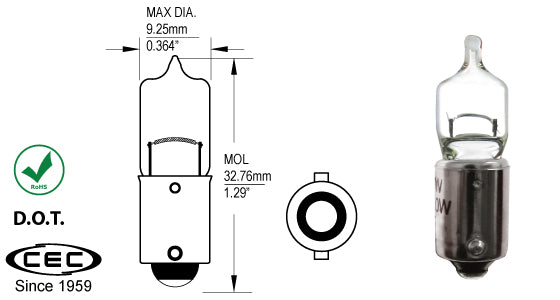

| Design Voltage | 12 | MOL ‡ | 1.29in/ 32.76mm | Rated Avg Life Hrs | 400 | |
| Design Amps | 0.83 | LCL †† | .59in/ 15.0mm | Headlight Socket | ||
| E-Mark | No | Drawing Details |  64113.pdf |
Announcement Sheet | 64113 (H10W).pdf |
|
† MOL (Maximum Overall Length):
The overall length of a lamp, from the top of the shell to the bottom of the base.
‡ MSCP (Mean Spherical Candlepower):
Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
†† LCL (Light Center Lenght):
The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271037078
