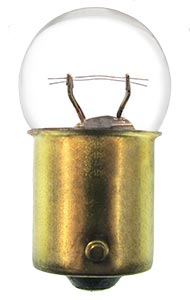

CEC Miniature Lamp #631, Box of 10
| Part # | 631 | |||||
|---|---|---|---|---|---|---|
| Description | G6 SC BAY 14V .63A 6CP | |||||
| Bulb Shape | G-6 | Filament | 2C-6 | Base Style | S.C. Bayonet (BA15s) | |
| Glass Diameter (in) | 0.75 | MOL† (in) | 1.44 | LCL†† (in) | 0.75 | |
| Glass Diameter (mm) | 19.05 | MOL (mm) | 36.56 | LCL (mm) | 19.05 | |
| Volts | 14 | MSCP ‡ | 6 | Avg Life Hrs | 1000 | |
| Watts | 8.82 | Amps | 0.63 | RoHS Compliant | Yes | |
| E-Marked | No | Drawing | New Announcement | |||
- † MOL (Maximum Overall Length):
- The overall length of a lamp, from the top of the shell to the bottom of the base.
- ‡ MSCP (Mean Spherical Candlepower):
- Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
- †† LCL (Light Center Lenght):
- The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271021602
