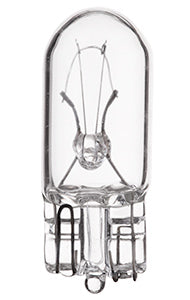

CEC Miniature Lamp #168, Box of 10

Part #	168
Description	T-3 1/4 WEDGE (W2.1X9.2d) 14V .35A 3CP
Bulb Shape	T-3 1/4	Filament	C-2F	Base Style	Wedge (T-3 1/4)
Glass Diameter (in)	0.406	MOL† (in)	1.06	LCL†† (in)	0.56
Glass Diameter (mm)	10.3	MOL (mm)	26.80	LCL (mm)	14.20
Volts	14	MSCP ‡	3	Avg Life Hrs	1500
Watts	4.9	Amps	0.35	RoHS Compliant	Yes
E-Marked	No	Drawing		New Announcement

† MOL (Maximum Overall Length):

The overall length of a lamp, from the top of the shell to the bottom of the base.

‡ MSCP (Mean Spherical Candlepower):

Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.

†† LCL (Light Center Lenght):

The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.

UPC: 014271020803
