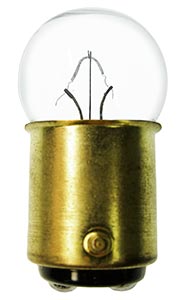

CEC Miniature Lamp #1178, Box of 10
| Part # | 1178 | |||||
|---|---|---|---|---|---|---|
| Description | G6 DC BAY 13.5V .69A 4CP | |||||
| Bulb Shape | G-6 | Filament | C-2V | Base Style | D.C. Bayonet (BA15d) | |
| Glass Diameter (in) | 0.75 | MOL† (in) | 1.44 | LCL†† (in) | 0.81 | |
| Glass Diameter (mm) | 19.05 | MOL (mm) | 36.58 | LCL (mm) | 20.57 | |
| Volts | 13.5 | MSCP ‡ | 4 | Avg Life Hrs | 5000 | |
| Watts | 9.315 | Amps | 0.69 | RoHS Compliant | Yes | |
| E-Marked | No | Drawing | New Announcement | |||
- † MOL (Maximum Overall Length):
- The overall length of a lamp, from the top of the shell to the bottom of the base.
- ‡ MSCP (Mean Spherical Candlepower):
- Candlepower produced at design volts. Candlepower is increased rapidly with an increase of applied voltage and conversely is reduced rapidly with a reduction of applied voltage.
- †† LCL (Light Center Lenght):
- The distance from a reference point, usually the bottom of the lamp base, to the center of the light source.
UPC: 014271022210
